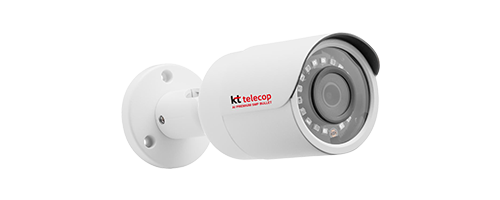

| KTT-AI5MPB |
| 제품 특징 |
●1/2.8"
CMOS SENSOR |
| ● 5MP HD Resolution Output |
| ● AI Smart Detection |
|
|
| Camera |
| Image Senser |
1/2.8” Sony IMX335 CMOS |
| Soc Chip |
Sigmastar SSC377D |
| Effective Pixels |
2592(H)×1944(V) |
| Exposure Shutter |
AUTO/Manual: 1/10s ~ 1/8000s, Max. Shutter speed adjustable |
| Day/Night |
Auto(Active/passive/schedule)/Day/Night, switch threshold |
| Image Adjust |
Brightness, Saturation, Sharpness, Contrast, Denoise (0-100%) |
| White Balance |
AWB / MWB |
| WDR |
100db WDR |
| DNR |
2D / 3D DNR |
| Encode |
| Video |
H.264 / H.265 / MJPEG |
| Video Resolution |
Main Stream: |
| 30fps @
5MP(2592x1944)/4MP(2560x1440)/3MP(2304X1296)/1080P/720P |
| Sub Stream: |
| 10fps @ 720P, 360fps @
D1(704x576)/(720x480)/VGA(640x480)/QVGA(640x360) |
| Video Bitrates |
Sub stream: 640kbps-8Mbps |
| Sub stream: 640kbps-2048kbps |
| VBR/CBR, quality(1-9), GOP(1-128) |
| Image |
0 / 90 / 180 / 270 degree adjustable |
| Border Crop |
X crop, Y crop |
| Image Mirror |
Horizon / vertical / horizon & vertical adjustable |
| OSD Overlay |
Font Size(1-4), position, Time, Title, AM/PM, Color, User OSD,
Alarm |
| Privacy Mask |
4 areas |
| Region of Interest |
ROI: Each stream support 8 areas |
| Audio |
G.711-u/G.711-a /AAC/PCM, AEC |
| Built-in Mic |
Optional |
| Led |
| Light |
18pcs SMD IR LEDs |
| IR Distance |
20-30M |
| Lens |
| Focal length |
3.6mm Fixed Lens |
| Smart Detection |
| Motion Detection |
Yes |
| Digital IO Alarm |
1 pair Alarm-in/Alarm-out, normally open/normally close |
| Human Vehicle Detection |
Support |
| Cross Line Detection |
Support |
| Perimeter Detection |
Support |
| Face Detection |
Support |
| Target Detection Type |
Human Shape, vehicle, non-motor vehicle, Pet, Face (32px-) |
| Trigger Action Linkage |
Snapshot, Record, Relay, Email, FTP, NAS storage (optional) |
| Simultaneous Detection |
Maximum 16 targets simultaneous detection |
| Storage type |
Schedule / Trigger: Email, FTP, NAS |
| Network Services |
| Protocol |
HTTPS(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P |
| /HiK/IPv4/IPv6/NFS |
| P2P Mobile APP |
Android, iOS |
| Web Access |
IE, Firefox, Chrome, Edge, Safari, etc. |
| PC Tool |
Windows, Mac |
| ONVIF |
23.12 compatible(Profile SGTM), |
| General |
| Network Port |
1-RJ45, 100Mbps, POE optional |
| Power supply |
12 VDC ± 10% |
| Power Consumption |
< 8W |
| Operating Temp. |
-20℃-(+60)℃, 10%-90%RH |
| Language |
| English, simplified Chinese,
Chinese Traditional, Korean, etc. |
