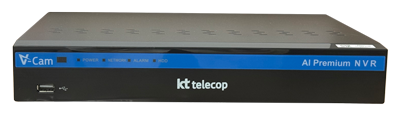

| KTT-AI5MPN |
| 제품
특징 |
● 기존 500만 DVR 아날로그 제품 대비
설계 단가 절감 |
| ● 장거리 및 시공시의 편의성 개선 |
| ● 디지털 영상의 고해상도 구현 |
| ● PoE 전 채널 full 지원 (IEEE
802.3af/at) |
| ● AI Smart Detection(AI 객체감지) 기능
탑재 |
| ● [KT자가경비-N] 어플 사용 |
|
|
|
|
|
| Class |
KTT-AI5MP16N |
KTT-AI5MP08N |
KTT-AI5MP04N |
| Video |
Input |
16 IP |
8 IP |
4 IP |
| Input Resolution |
Max, 4K |
| Output |
1 HDMI, 1 VGA |
| Output Resolution |
FHD, SXGA, XGA |
| Recording |
Speed |
7.5fps/ch(4K), 20fps/ch(4MP), 30fps/ch(2MP) |
| Compression |
H.265, H.264 |
| Resolution |
Max, 4K |
| Audio |
Input |
Depends on IP, 1 RCA |
| Output |
1 HDMI, 1 RCA |
| Interface |
Senser In/Out |
4/1 - NC/NO |
| USB |
2 x USB2.0 |
| PTZ / Keyboard |
RS485 |
| Network |
Interface |
Ethernet 10/100/1G |
Ethernet 10/100 |
| Compression |
H.265, H.264, JPEG |
| Resolution |
Max, 4MP |
| System |
OS |
Embedded Linux (Built-in Flash Memory) |
| Pre / Post-Alarm |
5sec / 5sec~5min |
| Recording Mode |
Continuous, Event, Schedule |
| Backup Interface |
USB, Network |
| Backup Type |
Video(RMS, AVI), Capture(JPEG), Log List, Setup
Data |
| User |
15 Users(Admin, User1 ~ User14) |
| Network Viewer |
Netus, VMS, Web Viewer, Mac Viewer,
SmartEyesPro(iOS, Android) |
| ONVIF |
ONVIF Profile S |
| Storage |
Primary / External |
2HDD |
1HDD |
| General |
Size |
385 x 42 x 315mm |
315 x 48 x 240mm |
| Weight (w/o HDD) |
3Kg |
1Kg |
| Temp/Humidity |
-10~55℃ / 10%~90% |
| PoE |
16PoE |
8PoE |
4PoE |
| IEEE 802.3af/at |
| Power Supply |
SMPS |
48V / 1.35A |
| Consumption |
280 Watts |
180 Watts |
65 Watts |
