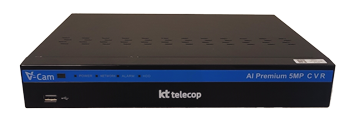

| KTT-5MPPAI |
| 제품
특징 |
● 모니터 UHD, QHD 지원 |
| ● 최대 8MP 화소 지원 |
| ● H.265, H.264 코덱 |
| ● [KT자가경비-N] 어플 사용 |
| ● AI Smart Detection(AI 객체감지) 기능
탑재 |
| ● 아날로그, IP 카메라 동시 호환 가능 |
|
|
|
|
|
| Class |
KTT-5MP04PAI |
KT-5MP08PAI |
KT-5MP16PAI |
| Video |
Input |
4 BNC |
8 BNC |
16 BNC |
| Input Resolution |
8MP, 5MP, 4MP, 3MP, 2MP, 960H |
| Output |
1 HDMI, 1 VGA, 1 CVBS |
| Output Resolution |
4K, FHD, SXGA |
| Recording |
Speed |
2MP : 30fps/ch |
| 3MP, 4MP :
15fps/ch |
| 5MP: 10fps //
8MP: 7fps |
| Compression |
H.265, H.264 |
| Resolution |
8MP, 5MP, 4MP, 3MP, 2MP, 960H |
| Audio |
Input |
4 RCA |
8 RCA |
4RCA / 12 D-SUB + SPOT |
| Output |
1 HDMI, 1 RCA |
| Interface |
Senser In/Out |
4/1 - NC/NO |
8/1 - NC/NO |
16/1 - NC/NO |
| USB |
2 x USB2.0 |
| PTZ |
RS485 - Terminal Block |
| Network |
Interface |
Ethernet 10/100 |
Ethernet 10/100/1G |
| Compression |
H.265, H.264 |
| Resolution |
REC Video Bypass Max. 4K) |
| System |
OS |
Embedded Linux (Built-in Flash Memory) |
| Pre / Post-Alarm |
5sec / 5sec~5min |
| Recording Mode |
Continuous, Event, Schedule |
| Data Search |
Smart, Panorama, Calendar, Multi Day |
| / Time, Event,
Go to Time |
| Backup Interface |
USB, Network |
| Backup Type |
Video(RMS, AVI), Capture(JPEG), Log List, Setup
Data |
| Alarm Action |
Buzzer, PTZ Preset, E-mail, Relay, Spot, Event
Popup, |
| Callback, Push |
| User |
15 Users(Admin, User1 ~ User14) |
| Network Viewer |
Netus, VMS, Web Viewer, Mac Viewer, |
| NETUS-Eyes(iOS,
Android) |
| ONVIF |
ONVIF Profile T |
| Storage |
Primary / External |
1HDD |
2HDD |
| General |
Size (W x H x D) |
300 x 53 x 227 mm |
378 x 50 x 340 mm |
| Temp/Humidity |
5 ~ 40℃ / 10%~80% |
| Power Supply |
12V / 2A |
12V / 5A |
| Power Consumption |
24 Watts |
60 Watts |
